How to start using PMcardio for Individuals

What you will find in this article:

• What is PMcardio for Individuals?
• How to get PMcardio for Individuals
• How to digitize your first 12-lead ECG
  • Information included in the ECG report detail
  • History of your digitized ECG reports



What is PMcardio for Individuals?

PMcardio for Individuals is a CE-certified AI that reads 12-lead ECGs and offers a complex assessment of up to 49 conditions. Clinically validated in 15+ studies and trusted by over 100,000 clinicians worldwide, it delivers rapid, expert‑level interpretations, empowering emergency physicians, GPs, nurses, paramedics, and cardiologists to act with confidence at the point of care. PMcardio for Individuals is easily accessible through any smartphone and is compatible with any 12-lead ECG device.

How to get PMcardio for Individuals

1. Download the PMcardio for Individuals mobile application to your phone from:
   Apple App Store for iOS
   Google Play Store for Android
2. Sign up on the application's home page.

You can find full signup instructions here.

How to digitize your first ECG

Please follow a step-by-step tutorial below:

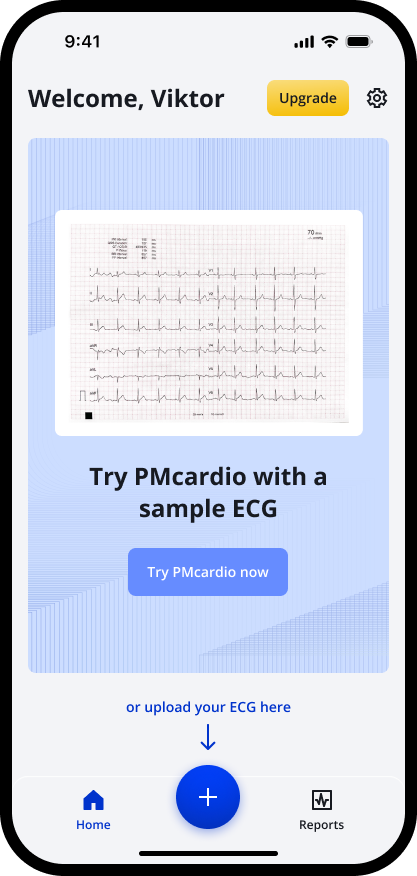

1. When you log into the app for the first time, you will be welcomed by a tutorial on the Home screen:



2. You can either try a sample ECG by pressing the blue Try PMcardio now button, or you can upload your own ECG by pressing the blue + button at the bottom of the screen.

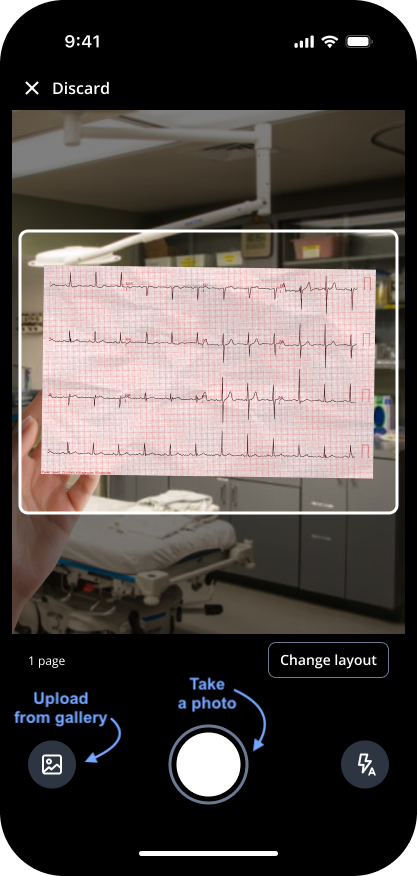

3. To upload your ECG, you can either take a photo of the ECG directly with the PMcardio camera (Important: you'll need to allow the camera permissions) or you can upload it from your phone's picture gallery:

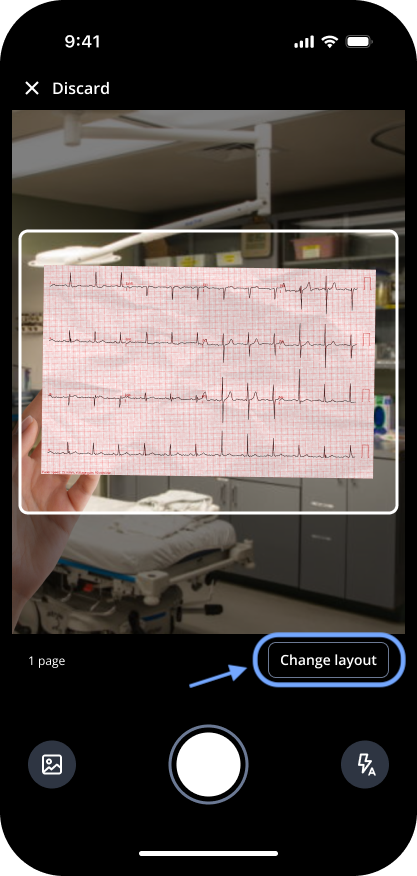

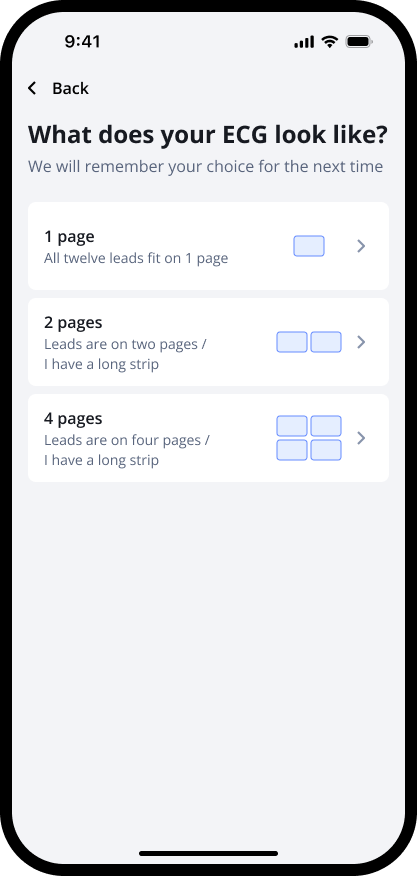

4. By default, the single-page ECG format is selected initially, but if you have a 2-page or 4-page ECG or if you wish to upload your ECG in two or four parts, simply click on the Change layout button in the PMcardio camera to switch to a 2-page or a 4-page format. PMcardio will remember your last ECG-format selection for the next photo upload.

Note: All the standard and Cabrera 12-lead ECG formats are supported by PMcardio, with automatic format detection for 1-page ECGs. You can find more details and visualizations of the supported formats in this article.

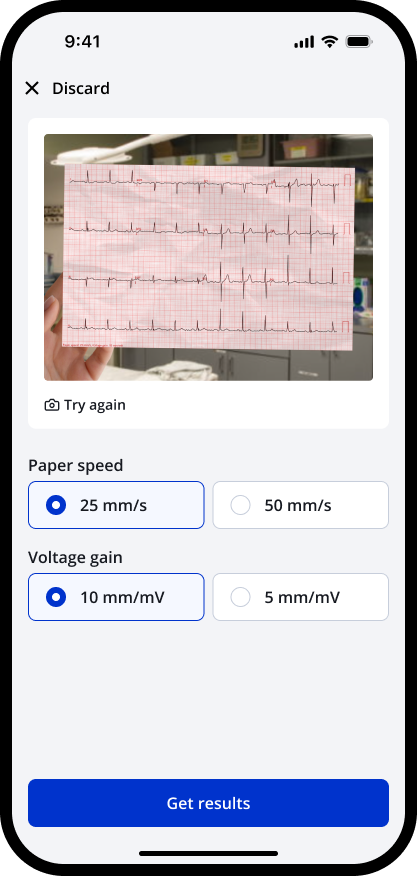

5. To continue with the ECG report creation after you've uploaded your ECG photo, make sure you have the correct paper speed and voltage gain selected, and click Get results

Note: PMcardio supports only the following paper speed and voltage gain settings:

6. After you click Get resultsPMcardio will digitize and interpret the ECG in a matter of seconds.

7. If PMcardio finds any signs suggestive of STEMI / STEMI equivalent on the ECG, the application will ask you to confirm the patient's clinical presentation before showing you the final diagnostic result and the digitized report with all the details (more information here).

For ECGs where PMcardio doesn't find any signs suggestive of STEMI / STEMI equivalent, it will immediately show you the digitized report with all the details.

8. Now your digitized ECG report is ready.

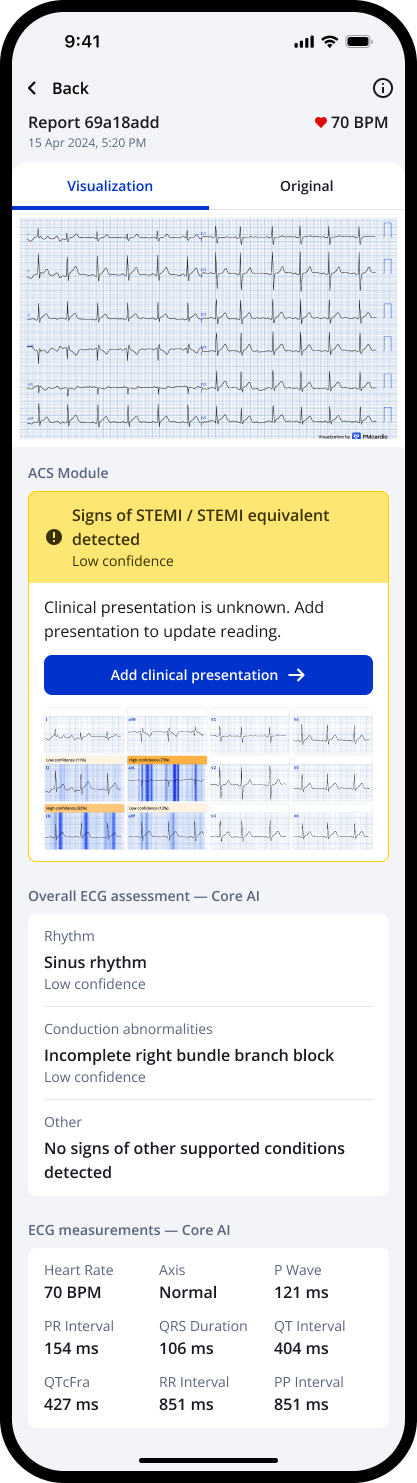

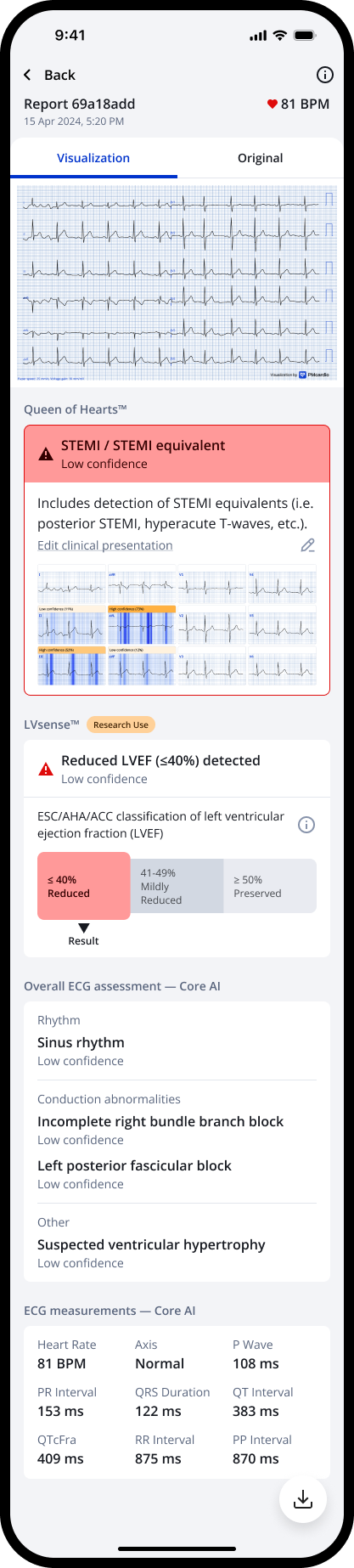

ECG report detail

In the report detail, you can find the following information:

• Unique Report ID
• Date of report creation
• Digitized ECG under the "Visualization" tab
• Original ECG photo under the "Original" tab
• ACS AI Module diagnostic result (more information available here)
• ACS AI Module explainability (only available with Pro Plan)
• Core AI Module diagnostic result (more information available here)
• ECG measurements, incl. BPM (only available with Pro Plan)
• Diagnostic low confidence indicators (only available with Pro Plan)

History of your ECG reports

To see the ECG reports you have already created, simply switch from the Home screen to the Reports tab in the bottom right. If you haven't created any reports yet, you will see an empty list. Once you create some reports, you will get to see one of these screens based on your current subscription option:

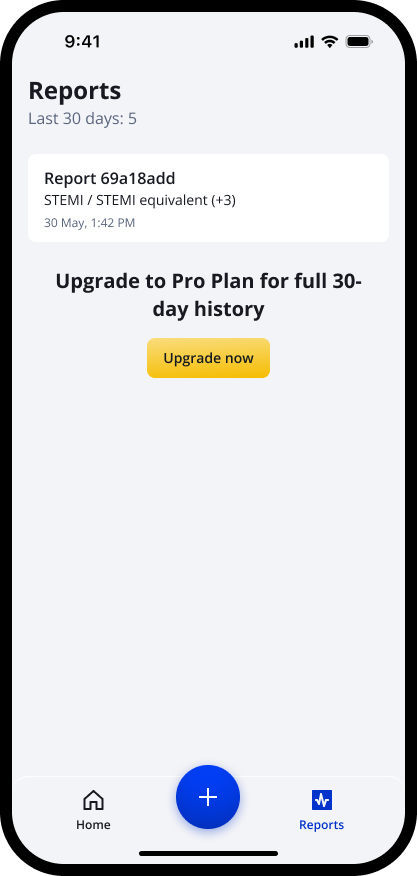

1. Under Free Plan, you will only see your last created report

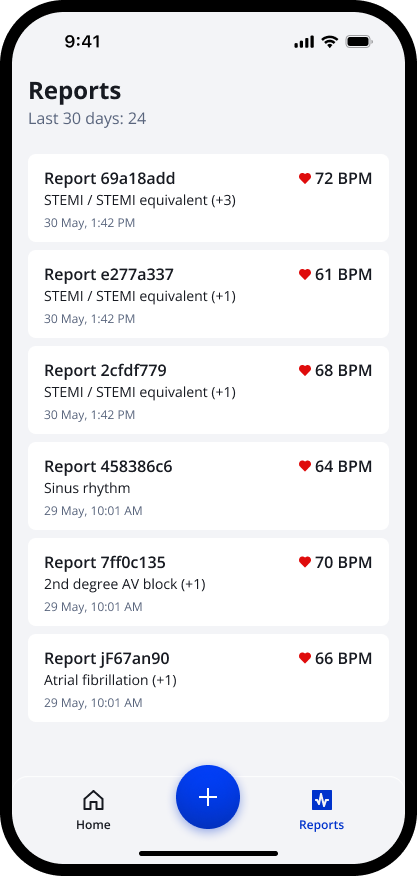

2. With Pro Plan, you will get a full 30-day report history
